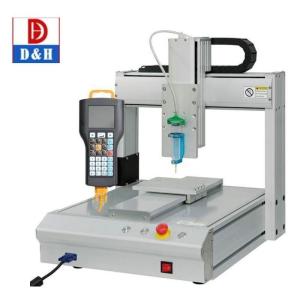

SMT Glue Dispenser Machine Robot Automatic Dispenser

Brand Name : D&H

Model Number : SZD-400

Certification : RoHS, CE

Place of Origin : Made-in China

MOQ : 1 Unit

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Packaging Details : Polywooden case

Model NO. : SZD-400

Installation : Vertical

Driven Type : Electric

Transport Package : Polywood Cases

Specification : 395x395x100mm

Trademark : D&H

Origin : China

HS Code : 8424899990

Supply Ability : 100

After-sales Service : Provided

Precision : High Precision

Condition : New

Warranty : 12 Months

Automatic Grade : Automatic

Customization : Available | Customized Request

Contact Now

SMT Glue Dispenser Machine Robot Automatic Dispenser

(1) Product feature:

1.1,Simple operation : Touch screen operation interface , which can record every data and give warning signal ; We provide feasible fixture to customer's products . Simple operation mode can save labor training timeandcost. 1.2 Precision glue-out amount controlled: All key parts use imported parts ,which can assured high speed , high precision and meet with high dependability automatic production requirement . This machine with unique controlling system , and is not affected by factors such as air pressure, can avoid glue from divide evenly,wire drawing and burrs.

1.3 Fast adjustable program : In the dispensing machine control system , which can save 99 or unlimited memories at the same time . Simply select the operation and quickly adapt to different workpiece ; This machine system can automatically order direction reforming ,automatic repeat path detection , automatic chamfering processing and smoothing.

1.4 Easy to program : This machine issue the teaching programmer.
1.5 Machine easy to adjust : this machine can be a certain range to meet the needs of different height of the workpiece, and can ensure that at the time of changing needle cylinder , not need to readjust trajectory correction;the mechanical structure in three directions can be adjusted freely.
1.6,Versatility and fast speed : Optional 1,2,4 dispensing heads to increase speed ; this machine are widely used in all kinds of fluid , various industries , various graphics (Point , line , curve and the combination of arbitrary point and lines)

Tech Data

Category	Parameter
Working range	X	400mm	Y	400mm	Z	100mm
Speed	X	250mm/s	Y	250mm/s	Z	250mm/s
Repeatability	X	±0.02mm	Y	±0.02mm	Z	±0.02mm
Dispensing accuracy	0.1ml
Weight	100kg
Power supply	AC220V 50Hz
Air source	0.4MPa---0.8MPa
Operating environment	Temperature 0~40ºC, Humidity 10~90%(non condensing)

Category	Configuration	Quantity
Frame	Aluminium profile/plate gold.		Y	400mm	Z	100mm
Three axis moving platform	Transmission sliding device	3 SETS	Y	250mm/s	Z	250mm/s
	stepping motor	3 PCS	Y	±0.02mm	Z	±0.02mm
	Sindin BLDC MOTOR	2 SETS
Others	Fixture / multi nozzles	1 SET
Power supply	AC220V 50Hz
Air source	0.4MPa---0.8MPa
Operating environment	Temperature 0~40ºC, Humidity 10~90%(non condensing)

Service Term

1, Staff training
Seller is responsible to provide machine's training including installation, debugging, maintenance to assured customer can totally use the operation skills and well acknowledge maintenance of machine .

2,Maintenance Service
2.1Seller provide one year warranty period and support free maintenance service during warranty . Software upgrade service is provided for a long life time.

2.2 In case parts of the machine become broken within the warranty because of non-artificial factors, we send you part replacement free, buyer pay for the shipment. Double-liquid valve should be bought at its cost price.

2.3If the parts of the machine become broken past warranty , the parts replacement should be shouldered by buyer.

Company Profile

Guangzhou Daheng Automation Equipment CO., Ltd is specialized in the R&D and sale of glue metering, mixing and dispensing machinery.
We believe in "the creation improves future". Core technology is the only true creation. The e core of all the liquid controlling device is its metering and mixing system. Daheng, always taking its continuous efforts in the new technology, new products and new working process, created its unique tech "double- cylinder pump", which is a liquid control system of high precision, changeable, continuous and long span time, and can be applied with glues of different viscosity. The core technology makes us the first pioneer in the gluing machine industry which passed CE certificate, SGS. We have over 20 patents, many original products and many "first" in the industry.
Including the standard machines we already have, we also accept customized services. We,headed in Guangzhou, and branched in Zhongshan, Shenzhen, Shanghai, and exported into Russia, Turkey, Netherland, Singapore, Indonesia and so on.
We provide the on-going train-up for customers, 24 hours x 7 days service, and keep ourselves being improved on and on.
The current and great development of Daheng depends on your support and trust. We will keep ourselves making long effort in the industry and products. We will keep improved in the cylinder pump and precision valve, and keep the leading among our competitors.
